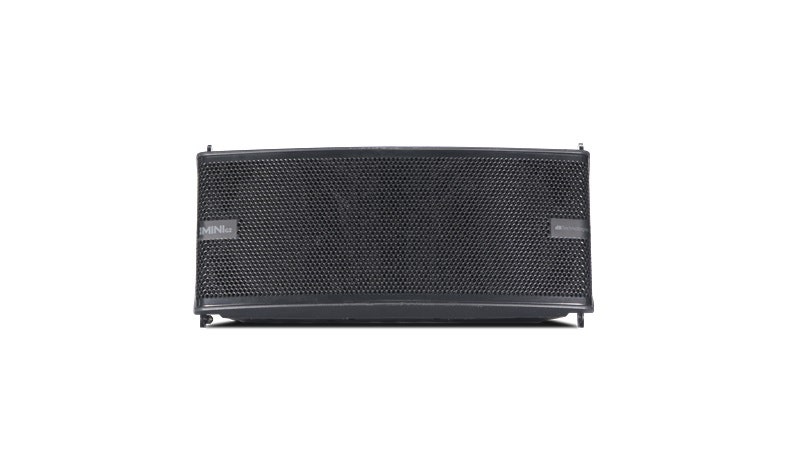

dB Technologies DVA MINI G2
Artikelnummer 2861720Super compact 2-Way Active Line Array Module, 131dB, 2x 6,5", 2x 0,75"
DVA Mini G2 - 2-Way Compact Mini Line Array
Enhancing ease of use as well as versatility thanks to complete network capability, DVA MINI G2 provides stunning power and sound pressure in an extraordinary lightweight and compact enclosure.
Each element is equipped with 2x6.5” neodymium woofers and 2x1” high-frequency neodymium compression drivers and driven by a Class D Digipro G3 amp module providing 400 W RMS. The system can reach an impressive 131-dB-per-unit sound pressure level.
The system’s advanced sound processing features linear-phase FIR filters allowing an excellent linear response, resulting in a clear and intelligible audio performance from every listening position.
DVA MINI also features complete network capability via Aurora Net control software which allows EQ, delay and processing customization and real time monitoring of the PA system in use. Nevertheless, the on-board 1 rotary provides for 7 different presets to adapt the system to basic applications.
An integrated quick-lock system links enclosures by simply placing one module below a companion module and sliding it towards one side until it locks in place. The rigging hardware is on the rear of every cabinet allowing for incremental steps for line array positioning. Extra-light DRK M5 fly-bar easily allows a fast rigging while DSF M2 accessory enables the system to be stacked on a standard pole.
The cabinets are constructed of reinforced polypropylene packing extra power in compact dimensions (460x190x345 mm) and feather-weight (only 8.4 kg per module).
- 2-WAY ACTIVE LINE ARRAY MODULE
- 400 W RMS DIGIPRO G3 AMP TECHNOLOGY
- Aurora Net
- 15° x 100°
- 131 dB MAX SPL
- USABLE BANDWIDTH [- 6 dB] 80 - 19.000 Hz
- HF: 2x 0.75", 2” v.c. - NEODYMIUM
- LF: 2x 6.5", 1.75” v.c. - NEODYMIUM
- Width: 460 mm
- Height: 190 mm
- Depth: 345 mm
- Weight: 8.4 kg
