Line source loudspeakers with coherent, intelligble, consistent coverage from 200 Hz to 20 kHz

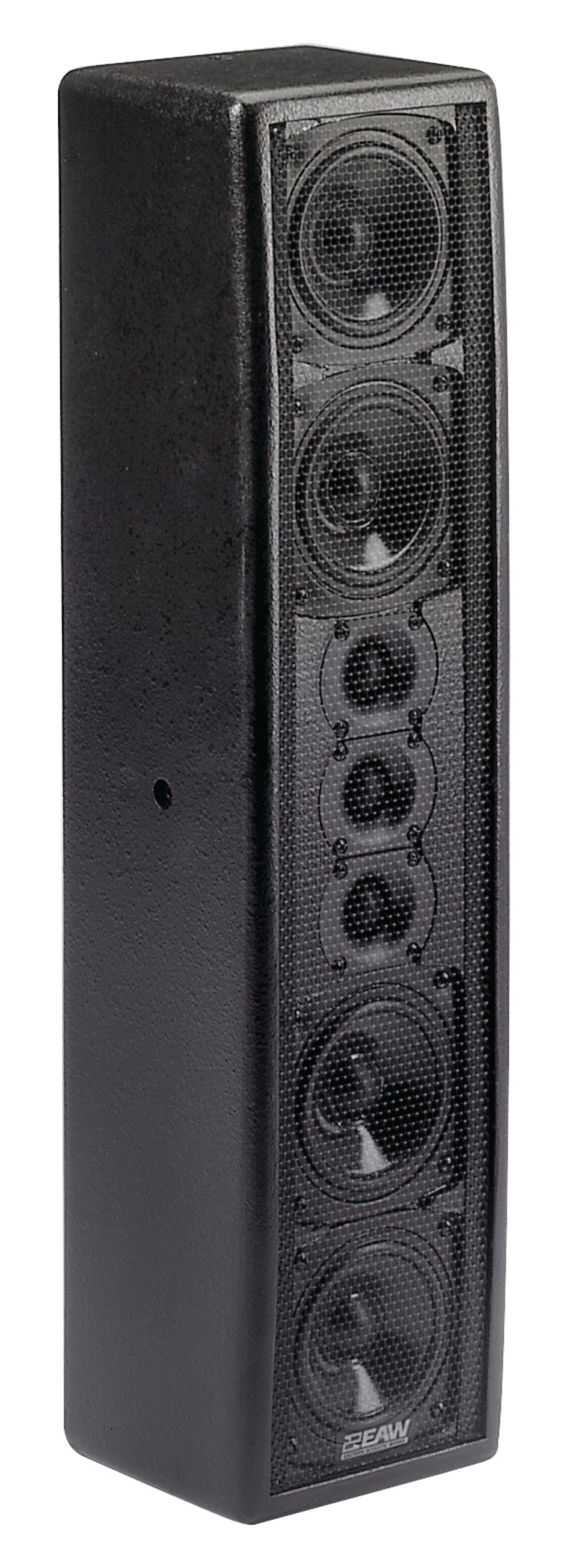

EAW’s LS432i line source loudspeaker system brings the classic column speaker up-to-date.
Sophisticated frequency shading and all-pass filtering integrates the 4x 4-in woofers and
3x 1-in soft dome tweeters, maximizing the benefits of line source coupling while eliminating grading lobes.
The system maintains a well behaved nominal vertical coverage pattern of 20° to below 1000 Hz.
Even at 500 Hz, the vertical pattern is still 80° . With the enclosure baffle defining a gentle arc,
the drivers form a curved line source to help prevent the vertical pattern from collapsing in the crossover region.
High performance Column Array(tm) system
4x 4-in LF/3x 1-in tweeters
Line array effects create consistent 20° x 140° coverage
Depth (max) 152
Depth (top) 146 Depth (bottom) 146
Weight: Net Weight 9.1 kg
